K-GP Thermocouple Wire & Cable

Size:2*26-2*14AWG
Color:Positive White With Green Stripe Negative White
Package: 305m/roll
Quantity:
Inquire Add to Basket

  • K-GP

  • Fongming

K Type Thermocouple wire


Description

Name:Thermocouple wire

Model：K-G-P Type

Size:2*26-2*14AWG

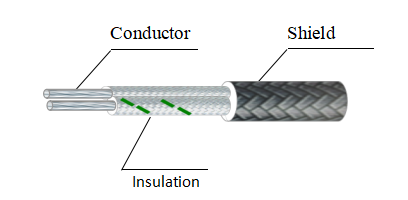

Structure

Conductor：Ni-Cr ,Ni-Si

Insulation:Fiberglass Braid and Silicone Resin Coating

Color:Positive White With Green Stripe Negative White

Shield:Stainless Steel Wire


微信截图_20201201113427


Size

(AWG)

Conductor

Structure

P&N  (mm)

Diameter

(mm)

Insulation Thickness

(mm)

Diameter

(mm)

Jacket

Thickness

(mm)

O.D.

(mm)

2*26

7/0.16

0.48

0.2

0.9

0.2

1.3±0.2*2.0±0.2

2*24

7/0.2

0.6

0.2

1.0

0.2

1.4±0.2*2.2±0.2

2*22

7/0.254

0.76

0.2

1.2

0.2

1.6±0.2*2.6±0.2

2*20

7/0.32

0.96

0.2

1.4

0.2

1.8±0.2*3.0±0.2

2*18

7/0.39

1.17

0.2

1.6

0.2

2.0±0.2*3.4±0.2

2*16

19/0.3

1.5

0.2

1.9

0.2

2.3±0.2*4.0±0.2

2*14

19/0.37

1.85

0.2

2.3

0.2

2.7±0.2*4.8±0.2
