FEP Insulated RTD Cable

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc.
Size: 3X26AWG,3X24AWG,3X22AWG,3X20AWG,3X18AWG,3X16AWG,3X14AWG

Quantity:



Inquire Add to Basket

Model:
RTD-F-F
Brand:
Fongming

Product Description

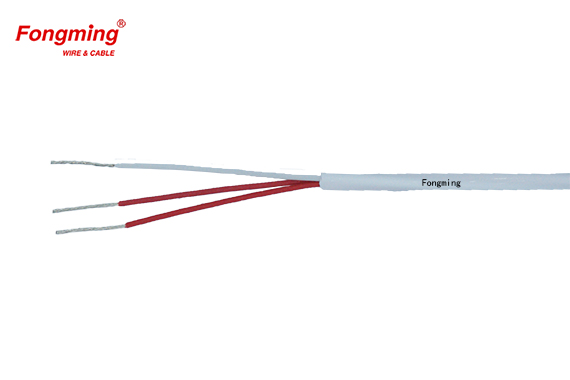

FEP Insulated RTD Cable

Description

Name:RTD Cable

Model:RTD-F-F Type

Size:3*26-3*14AWG

Structure

Conductor：Tinned Copper

Insulation: FEP

Color:2Red,1White

Jacket: FEP

Color:Red

RTD

Size (AWG)	Conductor Structure (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
3*26	7/0.16	0.48	0.2	0.9	0.5	2.9±0.2
3*24	7/0.2	0.6	0.2	1.0	0.5	3.2±0.2
3*22	7/0.254	0.76	0.2	1.2	0.5	3.6±0.2
3*20	7/0.32	0.96	0.2	1.4	0.5	4.0±0.2
3*18	7/0.39	1.17	0.25	1.7	0.5	4.7±0.3
2*16	19/0.3	1.5	0.25	2.0	0.5	5.3±0.3
3*14	19/0.37	1.85	0.25	2.4	0.5	6.2±0.3

RTD Cable RTD Wire FEP Insulated RTD Cable FEP Insulated RTD Wire FEP RTD Cable FEP RTD Wire Wire Cable RTD Wires RTD Cables
