200C 600V UL3135 Silicone lead Wire VW-1 wire

Color: Red, White, Yellow, Green, Brown, Black, Blue, Pink, etc Size: 26AWG, 24AWG, 22AWG, 20AWG,18AWG, 16AWG,14AWG,12AWG Package: 305m/roll

Availability:

Quantity:



Inquire Add to Basket

Model:
UL3135
Brand:
Fongming

Product Description

200C 600V UL3135 Silicone lead Wire VW-1 wire

Description

Name:Silicone Insulated Wire

Model:AWM 3135

Size:26~12AWG

Feature

Ratings Voltage:600V

Rated Temperature:200℃

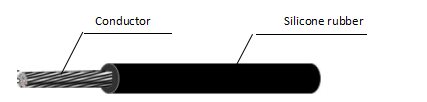

Structure

Conductor:Copper,Nickel Plated Copper,Tinned Copper

Insulation:Extruded Silicone Rubber

Color:Blue,Brown,Black,White,Red,Green,Yellow

Standard:UL758、UL1581

Size	Conductor Structure (No./mm)	Insulation Thickness (mm)	Diameter (mm)
26	7/0.16	≥0.76	2.1±0.1
24	7/0.20		2.2±0.1
22	7/0.254		2.4±0.1
20	10/0.254		2.6±0.1
18	16/0.254		2.8±0.1
16	26/0.254		3.1±0.1
14	41/0.254		3.5±0.1
12	65/0.254		4.0±0.1

VW-1 wire UL3135 Wire Silicone Wire 200C Silicone Wire 600V Silicone Wire UL3135 Silicone Wire UL3135 Silicone Cable Silicone Cable 200C Silicone Cable Flexible Silicone Wire
